Descriptions:

• 10/100Base-Tx RJ45 single port 1X1  Side Entry (Right Angle) with LEDS
• Single port 1X1 Tab-Down RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
•  ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :0℃ to +70℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Shield:YES
• Rohs compliant
• Length:21.3mm
• LEDS:YES
• EMI fingers:NO

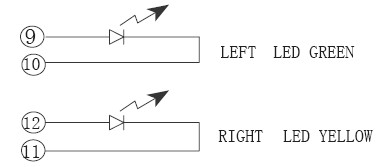

• LEFT LED:Green,RIGHT LED:Yellow
• Usage:HR911103A/KRJ-125NL

Mechanical Dimensions:(Unit:mm)

. XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

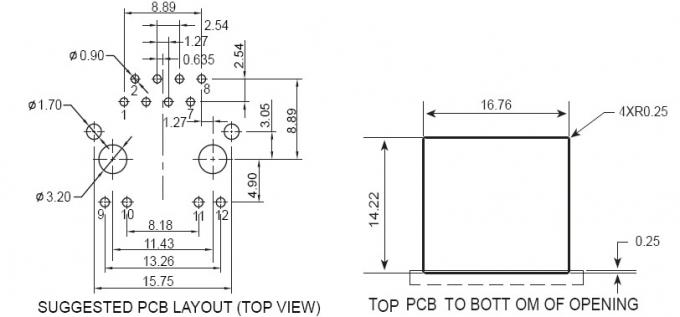

PCB Layout Mouting Hole:(Unit:mm)

. XX Tolerance:+/-0.25

.XXX Tolerance:+/-0.13

Electrical Specifications at 25℃

．Insertion Loss:1-100MHZ -1.0dBmax

．Rturn Loss:1-30MHZ -16.0dBmin

            30-60MHZ -14.0dBmin

            60-80MHZ -10.0dBmin

．Cross Talk:1-30MHZ -40.0dBmin

         30-60MHZ -35.0dBmin

         60-80MHZ -30.0dBmin

．CMR:1-100MHZ -35dBmin

．Hi-pot:1500v AC 6S 1mA

．Turn Ratio:1CT:1CT±3%

．OCL:350uH  @100KHZ 100Mv 8mA  DC

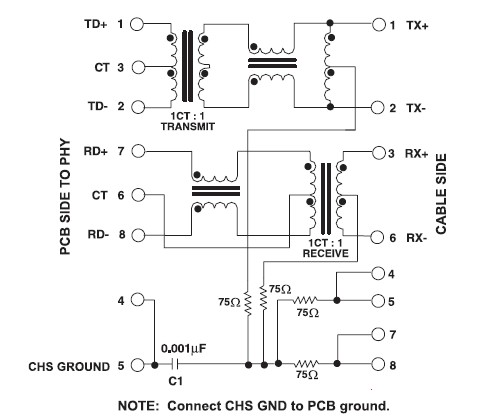

Schematic:
